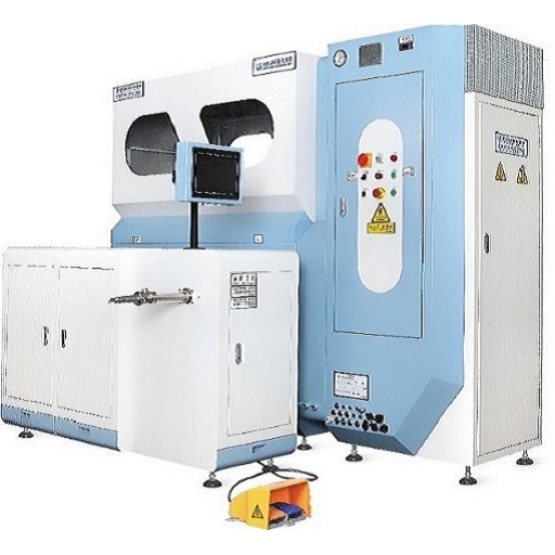

The 3rd Generation High-performance Filling Machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: 818B

Certification: CE

Type: Garment

Automatic Grade: Automatic

Condition: New

Function: Stuffing Clothes

Driven Type: Pneumatic

After-sales Service: Local Agent And Our Engineers


Additional Info


Packaging: Plywood Box

Brand: BEALEAD

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

Altogether 33 production invention and utility model patents have been granted by the State.

Scope of Application

The down filling machine is applies in down garments manufactrers' filling process, and is applicable to 90,80,70,60 and 50 down.

Working Principle

High-pressure air is used to absorb down through the automatic weighing system, and to fill the panel with a preset weight of down.

Filling Port: Two under independent operation. Each panel piece can be set to 100 grid grams. It can save up to 100 sets of data for different panels.

Singal Down Loading Volume: 10kg~12kg approximately(duck down)

Filling Requirement: 90, 80, 70, 60, 50 down, dry

Machine Accuracy: ± 3%

Details:

Brand: Bealead

Model: 818B

Composed by: 1 feeding unit and 2 weighing units/ filling station

Filling Pipes: 2

Scales by filling pipe: 3

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 920kg

Filling Storage: 12kg

Weighing Range: 0.2g- 32g

Accuracy: 0.01g

Feeding Unit Size: 2.45* 0.95* 1.95m

Weighing Unit Size: 1.6* 0.57* 1.05m

Overall Size: 2.45* 4.4* 1.95m

Min. Site Area: 5m* 6m


Main Specification

Voltage
220V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 7.5KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1m³/min
Max. Power 2.5KW
Air Monitoring System      √
PPR Pipe 1 inch
Down Returning System      √
Pipe Distance ≤20m
Humidity Control System      √

Accessories

Automatic Down Jacket Filling Machine

down stuffer 818

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
