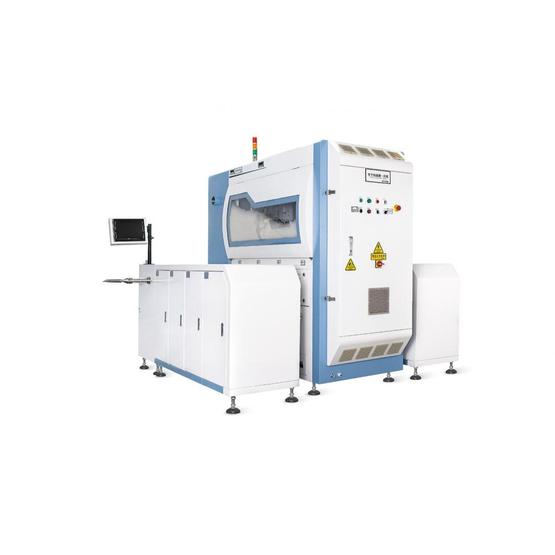

Super High Precision Down & Cotton All-in-one Machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: 828B

Certification: CE, ISO

Type: Garment

Automatic Grade: Automatic

Condition: New

Function: Filling Clothes

Driven Type: Pneumatic

After-sales Service: Local Agent And Our Engineers


Additional Info


Packaging: Plywood Box

Brand: BEALEAD

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

This automatic down filling machine is our fourth generation filling machine with a 4 scales by filling pipe, so the speed of the machine is very fast. At same time, its precision can reach to 0.001g.

Targeted to Down & Feather as well as Polyester Balls filling materials.

As automatically scale clean, down returning system and constant humidity control functions.


Details:

Brand: Bealead

Model: 828B

Composed by: 1 feeding unit and 2 Weighing Units/ Filling Station

Filling Pipes: 2

Scales by filling pipe: 4

Fillings by hour: 1800 ( Polyester Balls)/ 1400 ( Down)

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 1300kg

Filling Storage: 13kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Feeding Unit Size: 2.4* 1* 2.1m

Weighing Unit Size: 2.15* 0.7* 1m

Overall Size: 2.4* 4.4* 2.1m

Min. Site Area: 5m* 6m

Main Specification

Voltage
220V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 11KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1.6m³/min
Max. Power 4KW
Air Monitoring System
PPR Pipe 1.5 inch
Down Returning System
Pipe Distance ≤20m
Humidity Control System



filling machine 4

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
