Ski Jacket Filling Machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: 2301


Additional Info


Packaging: Plywood box

Brand: BEALEAD

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 200 sets/month

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

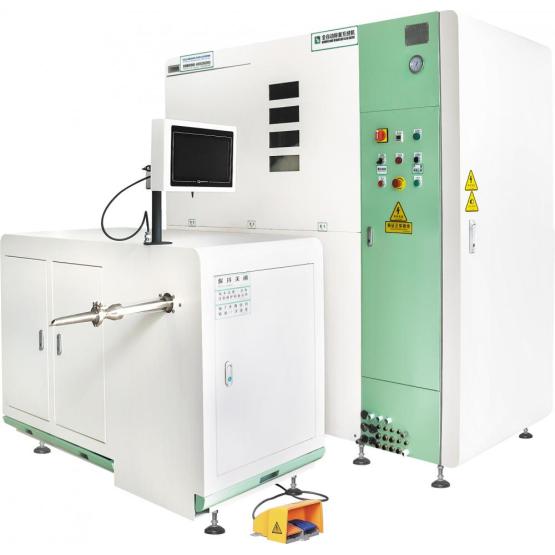

2301 is our Third generation down garment filling machine, with 2 filling stations, allowe 2 workers operate at same time.

The range of single time: 0.2-32g, capable of filling both large and small lattice panels.
Touch screen design easily, enables data storage, on-time insight and data revision.

Details:

Brand: Bealead

Model: 2301

Composed by: 1 feeding unit and 2 weighing units/ filling station

Filling Pipes: 2

Scales by filling pipe: 3

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 800kg

Filling Storage: 10kg

Weighing Range: 0.2g- 32g

Accuracy: 0.01g

Feeding Unit Size: 2.1* 0.9* 2m

Weighing Unit Size: 1.55* 0.57* 1m

Overall Size: 2.1* 4.4* 2m

Min. Site Area: 5m* 6m

Main Specification

Voltage
220V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 7.5KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1m³/min
Max. Power 2.5KW
Air Monitoring System      √
PPR Pipe 1 inch
Down Returning System      √
Pipe Distance ≤20m
Humidity Control System      -

Accessories

Automatic Down Jacket Filling Machine
