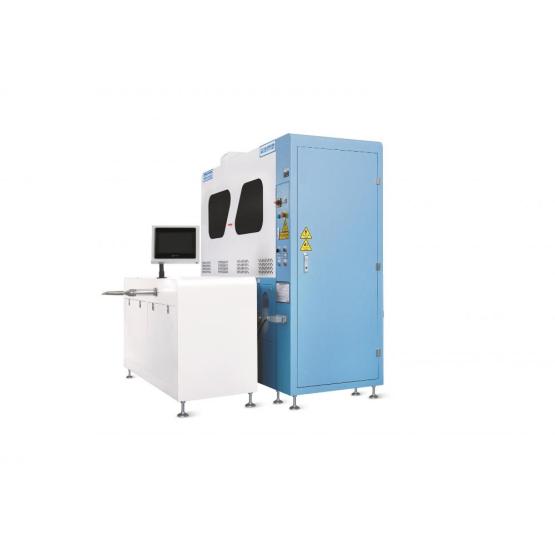

One Nozzle Filling Machine
Model No.: DF-1601-X
Automatic Grade: Automatic
Driven Type: Pneumatic
Function: Stuffing Clothes
After-sales Service: Local Agent And Our Engineers
Packaging: Plywood Box
Place of Origin: CHINA
Supply Ability: 200 SETS/MONTH
Certificate: CE/ISO 9001
Most popular automatic down filling machine, which is installed easily.
Six scales support each filling port of down filling machine, accuracy reach to 0.01g.
Each weighing system of down garment filling machine works independently, that is if there`s problem in a single system, the down jacket filling machine can still operate normally.
Equipped with aviation joint for high output down filling machine, it is easy to install, and allows for plug and play.
If order is increased, can be added another weighing system for the down stuffing machine.
Composed by: 1 feeding unit and 2 weighing units/ filling station
Filling Pipes: 1
Scales by filling pipe: 6
Fillings by hour: 800-1000 lattices
Application: Apparel, Commodity, Textiles
Material Application: 50%- 90% down
Filling Storage: 10kg
Weighing Range: 0.2g- 20g
Feeding Unit Size: 2.1* 0.8* 2.1m
Weighing Unit Size: 1.8* 0.6* 0.95m
Min. Site Area: 5m* 6m
||Air Compressor Power||
|Min. Air Pressure||
Air Compressor Exhaust
||Air Monitoring System||
||Down Returning System||
||Humidity Control System||√|
ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.
Our company is R&D manufacturer of intelligent device for clothing production. We are in leading
position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.
We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
