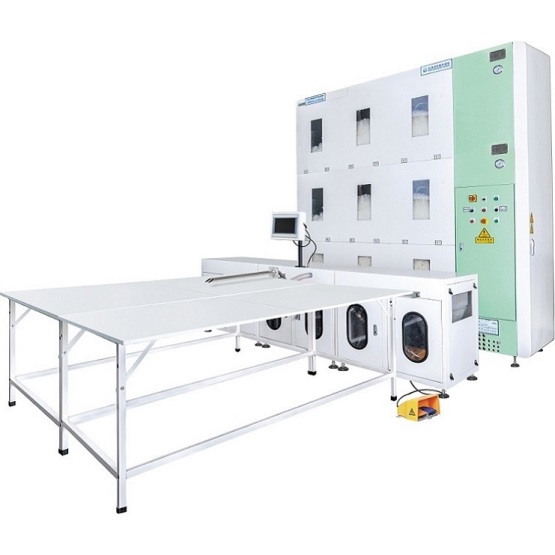

Lightweight Comforter Filling Machine

Min. Order: 1 Set/Sets

Basic Info


Model No.: BL-1202

Certification: ISO9001: 2000

Condition: New

Function: Filling Duvet

Driven Type: Pneumatic

After-sales Service: Local Agent And Our Engineers


Additional Info


Packaging: Plywood Box

Brand: BEALEAD

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

Automatic bedding making machinery with weighing system, 2 filling ports can be together as well as be seperated. Automatic down filling machine which is suitable for small and medium home textile manufactures.

This down filling machine is mainly applied in the down quilt enterprises which have multispecies but small quantity orders Using automatic weighing technology instead of original handwork and semi-auto equipment. It is the automation revolution of home textiles filling industry.

1202  quilt filling machine is widely used for home textile, like Duvets or comforter.

Filling one quilt by automatic home textile filling machine takes about 3 minutes, save time and labor.

Details:

Brand: Bealead

Model: BL-1202

Composed by: 1 feeding unit and 3 weighing units 1 filling station

Filling Pipes: 2

Scales by filling pipe: 4

Fillings by hour: 800 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 1300kg

Filling Storage: 25kg

Weighing Range: 1g- 60g

Accuracy: 0.1g

Feeding Unit Size: 2.55* 0.9* 3.5m

Weighing Unit Size: 2.7* 0.66* 0.87m

Overall Size: 2.9* 4.7* 3.7m

Min. Site Area: 6m* 7m


Main Specification

Voltage
380V
Air Tank ≥2m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 11KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1.6m³/min
Max. Power 4.5KW
Air Monitoring System      √
PPR Pipe 1.5 inch
Down Returning System      -
Pipe Distance ≤20m
Humidity Control System      -

Accessories

Parts Of Down Filling Machine

Duvet Filling1202

Duvet filling machine
