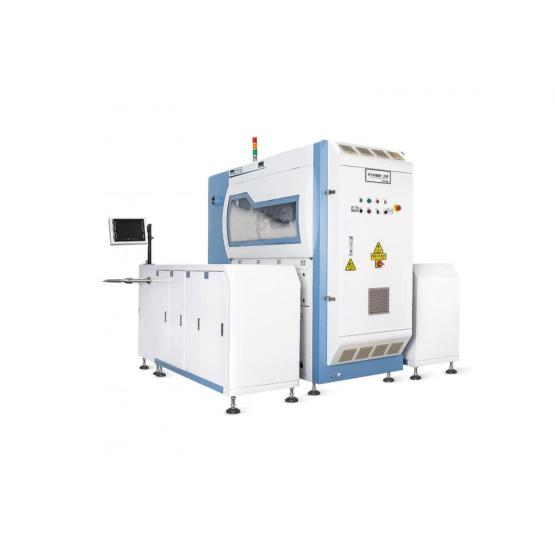

High Accurate Down Filling Machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: 828B

Certification: CE

Type: Garment

Automatic Grade: Automatic

Condition: New

Function: Stuffing Clothes

Driven Type: Pneumatic

After-sales Service: Local Agent And Our Engineers


Additional Info


Packaging: Plywood Box

Brand: BEALEAD

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

High output down filling machine is our newest machine for filling down, can fill 50%-90% down. Down filling machine has 2 filling stations, there are four weighing systems supporting one filling nozzle, so the speed is very fast. Automatic down filling machine with high precision, can reach to 0.001g.

Details:

Brand: Bealead

Model: 828B

Composed by: 1 feeding unit and 2 Weighing Units/ Filling Station

Filling Pipes: 2

Scales by filling pipe: 4

Fillings by hour: 1800 ( Polyester Balls)/ 1400 ( Down)

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 1300kg

Filling Storage: 13kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Feeding Unit Size: 2.4* 1* 2.1m

Weighing Unit Size: 2.15* 0.7* 1m

Overall Size: 2.4* 4.4* 2.1m

Min. Site Area: 5m* 6m


Main Specification

Voltage
220V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 11KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1.6m³/min
Max. Power 4KW
Air Monitoring System
PPR Pipe 1.5 inch
Down Returning System
Pipe Distance ≤20m
Humidity Control System
