Fully Automatic Comforter Filling Machinery

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: BL-1202

Certification: CE, ISO9001: 2000

Condition: New

Function: Filling Duvet

Driven Type: Pneumatic

After-sales Service: Local Agent Could Help Service And Our Engineers A


Additional Info


Packaging: Plywood Box

Brand: BEALEAD

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

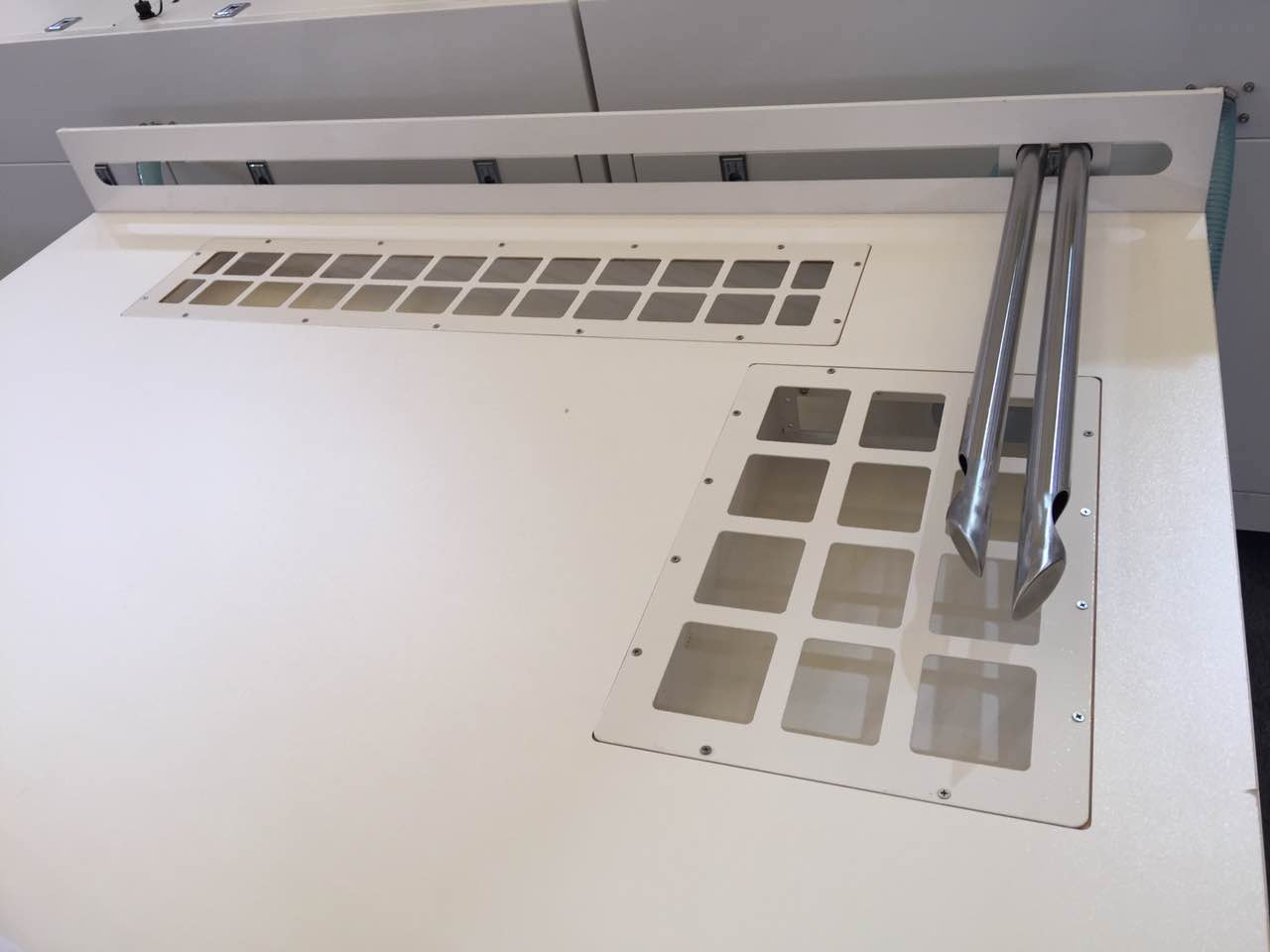

Targeted to middle size down duvets factories, our R&D department develop this double pipe in a table down quilt filling machine, operated by one worker, filling 2 panels at the same time. Automatic comforter filling machine's weighing range is 1-60g. With 4 scales by pipe, this home textile Filling Machine is fast with 0.1g accuracy.

Details:

Brand: Bealead

Model: BL-1202

Composed by: 1 feeding unit and 3 weighing units 1 filling station

Filling Pipes: 2

Scales by filling pipe: 4

Fillings by hour: 800 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 1300kg

Filling Storage: 25kg

Weighing Range: 1g- 60g

Accuracy: 0.1g

Feeding Unit Size: 2.55* 0.9* 3.5m

Weighing Unit Size: 2.7* 0.66* 0.87m

Overall Size: 2.9* 4.7* 3.7m

Min. Site Area: 6m* 7m


Main Specification

Voltage
380V
Air Tank ≥2m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 11KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1.6m³/min
Max. Power 4.5KW
Air Monitoring System      √
PPR Pipe 1.5 inch
Down Returning System      -
Pipe Distance ≤20m
Humidity Control System      -

Accessories

Parts Of Down Filling Machine

Duvet filling machine


filling nozzles

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service you at the first time you need.


Our Factory


Down Filling Machine Factory



Intelligent production


FactoryBealead


Exhibitions

Down Filling


Certificate

Certification 2Ce Certification
