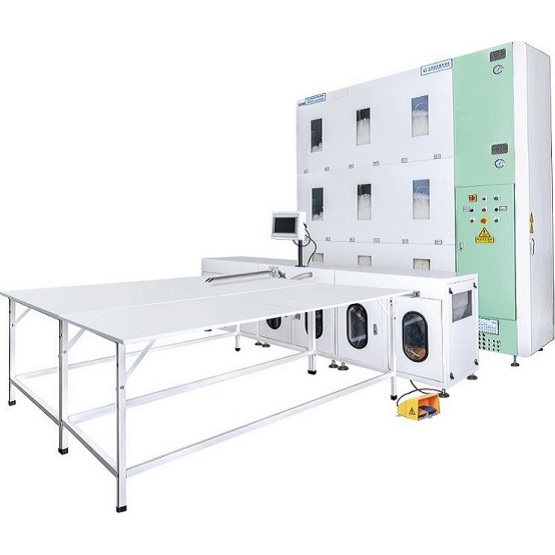

Fully Automatic Blanket Filling Machine
Model No.: BL-1202
Certification: CE, ISO9001: 2000
Function: Filling Duvet
Driven Type: Pneumatic
After-sales Service: Local Agent And Our Engineers
Packaging: Plywood Box
Place of Origin: CHINA
Supply Ability: 200 SETS/MONTH
Certificate: CE/ISO 9001
This quilt filling machine, targeted to middle size down duvets factories, our R&D department develop this double pipes in a table machine, operated by one worker, filling 2 panels at the same time. Its weighing range is 1-60g. With 3 scales by pipe, this Automatic Filling Machine is fast with 0.1g accuracy.
Composed by: 1 feeding unit and 3 weighing units 1 filling station
Filling Pipes: 2
Scales by filling pipe: 4
Fillings by hour: 800 lattices
Application: Apparel, Commodity, Textiles
Material Application: 50%- 90% down
Filling Storage: 25kg
Weighing Range: 1g- 60g
Feeding Unit Size: 2.55* 0.9* 3.5m
Weighing Unit Size: 2.7* 0.66* 0.87m
Overall Size: 2.9* 4.7* 3.7m
Min. Site Area: 6m* 7m
||Air Compressor Power||
|Min. Air Pressure||
Air Compressor Exhaust
||Air Monitoring System||
||Down Returning System||
||Humidity Control System||-|
ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.
Our company is R&D manufacturer of intelligent device for clothing production. We are in leading
position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.
We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service you at the first time you need.
