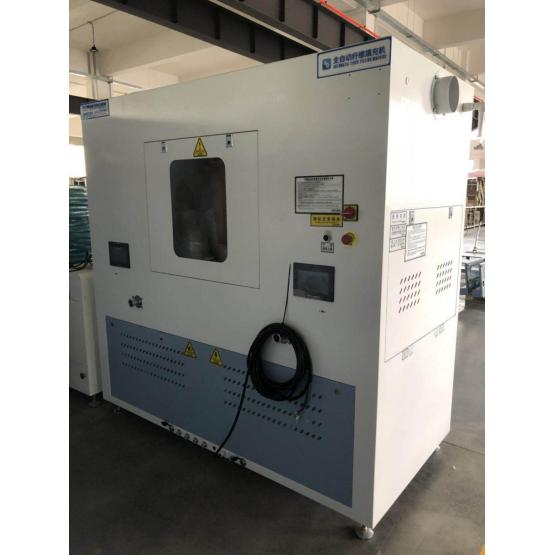

Fully Auto Fiber Stuffing Machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BL-402D

Certification: CE, ISO

Type: Garment

Automatic Grade: Automatic

Condition: New

Function: Filling Clothes

Driven Type: Pneumatic

After-sales Service: Local Agent And Engineers


Additional Info


Packaging: Plywood box

Brand: BEALEAD

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

Max weight of ball fiber filling machine can reach to 80g, min is 5g.

Fully automatic fiber filling machine, Aim at filling fiber, Double filling ports for fiber filling machine, allow 2 operators working at the same time.


Fully automatic fiber filling machine, weighing and filling.


Highest precision of polyester fiber filling machine reach to 0.1g.

Storage unit and weighing unit of fiber stuffing machine are combined together to reduce covering space.

Details:

Brand: Bealead

Model: 402E

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 2

Scales by filling pipe: 2

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 5g- 80g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Voltage
380V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 11KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1.6m³/min
Max. Power 3.5KW
Air Monitoring System      -
PPR Pipe 1.5 inch
Down Returning System      -
Pipe Distance ≤20m
Humidity Control System

Accessories

parts of down filling machine
