Fiber And Down Filling Machine
Model No.: BL-246B
Certification: CE, ISO
Automatic Grade: Automatic
Driven Type: Pneumatic
Function: Stuffing Clothes
After-sales Service: Local Agent And Our Engineers
Packaging: Plywood box
Place of Origin: CHINA
Supply Ability: 200 SETS/MONTH
Certificate: CE/ISO 9001
1. All-in-one machine, High Valuable machine. Down filling machine as well as fiber filling machine, could fill two different mateirals: down and Ball fiber. Shot your cost problem!
2. 2 pipes, allow 2 people operating machine at the same time to finish different Filling target.
3. Each pipe supported by 4 weighing scales. Work very fast, Machine always prepare well in advance.
4. Save Up 100*100 data, help you keep many styles data inside computer.
5. Single Fiber Holding Volume: 8kg~12kg approximately.
6. Machines can be widely used for garments(jackets, vests), sleeping bags, comforters/duvets, and accessories.
Composed by: 1 feeding unit and 2 Weighing Units/ Filling Station
Filling Pipes: 2
Scales by filling pipe: 4
Fillings by hour: 1800 ( Polyester Balls)/ 1400 ( Down)
Application: Apparel, Commodity, Textiles
Material Application: 50%- 90% down
Filling Storage: 10kg
Weighing Range: 0.2g- 20g
Feeding Unit Size: 2.4* 0.9* 2m
Weighing Unit Size: 1.6* 0.5* 0.9m
Overall Size: 2.4* 4.2* 2m
Min. Site Area: 4m* 5m
||Air Compressor Power||
|Min. Air Pressure||
Air Compressor Exhaust
||Air Monitoring System||
||Down Returning System||
||Humidity Control System||-|

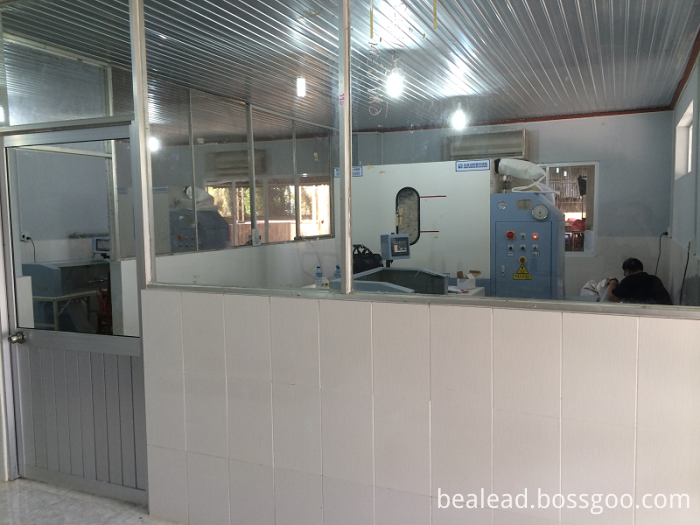

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.
Our company is R&D manufacturer of intelligent device for clothing production. We are in leading
position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.
We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service you at the first time you need.
