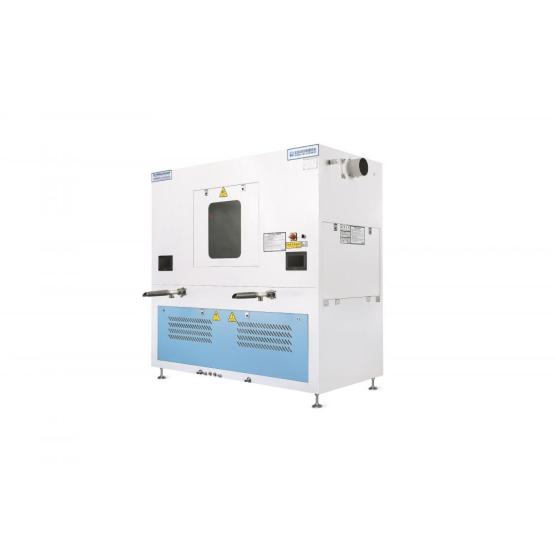

Fiber 4 Scales Down Filling Machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BL-402D

Certification: CE, ISO

Type: Garment

Automatic Grade: Automatic

Condition: New

Function: Filling Clothes

Driven Type: Pneumatic

After-sales Service: Local Agent And Engineers


Additional Info


Packaging: Plywood box

Brand: BEALEAD

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

New development for the fiber filling machine, Weighing unit has been combined into main box, so covered space of automatic cotton filling machine would be reduced.

Aimed at filling fiber, 2 filling ports with 2 scales for each.

Ball fiber filling machine has apportioned function for big grams. Weighing range of fiber stuffing machine is 1-80g, capable of filling both large and small lattice panels.

Highest precision can reach to 0.1g.

Details:

Brand: Bealead

Model: 402D

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 2

Scales by filling pipe: 2

Fillings by hour: 1600 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 1g- 80g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Voltage
380V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 11KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1.6m³/min
Max. Power 3.5KW
Air Monitoring System      -
PPR Pipe 1.5 inch
Down Returning System      -
Pipe Distance ≤20m
Humidity Control System

Accessories

Automatic Down Jacket Filling Machine

Fiber Filling Machine


Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.

Our Factory

Down Filling Machine Factory

Exhibitions

Down Filling Machine Exhibition


CE Certificate

Filling Machine CE
