Automatic Down Feather Garments Filling Machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: 2301

Certification: CE

Type: Garment

Automatic Grade: Automatic

Condition: New

Function: Filling Clothes

Driven Type: Pneumatic

After-sales Service: Local Agent And Engineers


Additional Info


Packaging: Plywood box

Brand: BEALEAD

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 200 sets/month

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

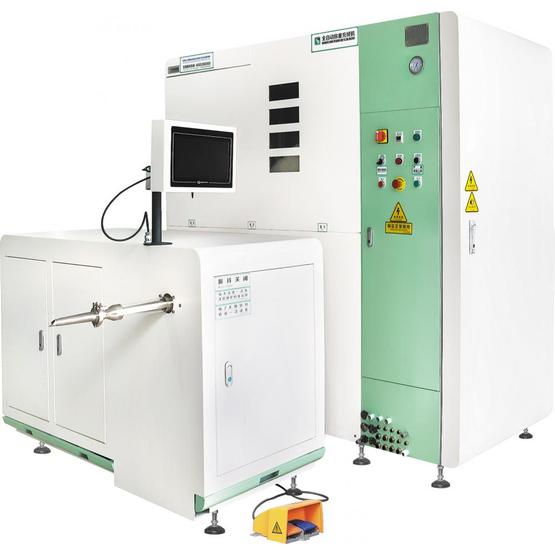

Automatic down filling machine 2301 is a more cost efficiency machine, it has the same function with 818B. There are 2 filling stations, allowed 2 workers operating the machine at same time.

This filling machine's precision can reach to 0.01g. It has 3 weighing scales, the speed of down filling machine is 2- 4 times faster than that of manual method.

Details:

Brand: Bealead

Model: 2301

Composed by: 1 feeding unit and 2 weighing units/ filling station

Filling Pipes: 2

Scales by filling pipe: 3

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 800kg

Filling Storage: 10kg

Weighing Range: 0.2g- 32g

Accuracy: 0.01g

Feeding Unit Size: 2.1* 0.9* 2m

Weighing Unit Size: 1.55* 0.57* 1m

Overall Size: 2.1* 4.4* 2m

Min. Site Area: 5m* 6m

Main Specification

Voltage
220V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 7.5KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1m³/min
Max. Power 2.5KW
Air Monitoring System      √
PPR Pipe 1 inch
Down Returning System      √
Pipe Distance ≤20m
Humidity Control System      -

Accessories

Automatic Down Jacket Filling Machine

Company Information


ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
