Automated Down Parka Filling Machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BL-818B

Certification: CE

Type: Garment

Automatic Grade: Automatic

Condition: New

Function: Stuffing Clothes

Driven Type: Pneumatic

After-sales Service: Local Agent And Our Engineers


Additional Info


Packaging: Plywood Box

Brand: BEALEAD

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

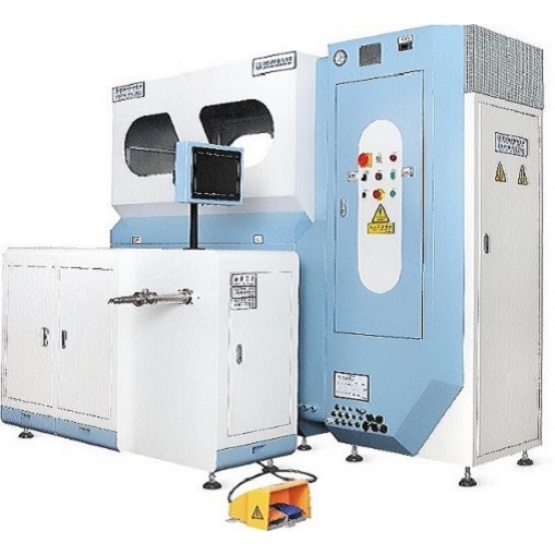

Excellent Double Filling Station Machine

High output down filling machine, with high capacity and double filling stations which is allowing 2 independent filling operations at same time; Automatic down filling machine, Fast & Accurate has constant humidity control, charging button, data transfer, air pressure monitoring and down returning functions.

With excellent performance, this down jacket filling machine is the best seller for last 2 years. As well, the down filling machine can be customized to quilt filling machine by changing the nozzle.

Details:

Brand: Bealead

Model: 818B

Composed by: 1 feeding unit and 2 weighing units/ filling stations

Filling Pipes: 2

Scales by filling pipe: 3

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 920kg

Filling Storage: 12kg

Weighing Range: 0.2g- 32g

Accuracy: 0.01g

Feeding Unit Size: 2.45* 0.95* 1.95m

Weighing Unit Size: 1.6* 0.57* 1.05m

Overall Size: 2.45* 4.4* 1.95m

Min. Site Area: 5m* 6m

Main Specification

Voltage
220V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 7.5KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1m³/min
Max. Power 2.5KW
Air Monitoring System      √
PPR Pipe 1 inch
Down Returning System      √
Pipe Distance ≤20m
Humidity Control System      √

Down Filling Machine 818B

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service you at the first time you need.


Our Factory

Automatic Machinery company


Exhibitions

Automatic Filling Machine


CE Certificate

Filling Machine CE
