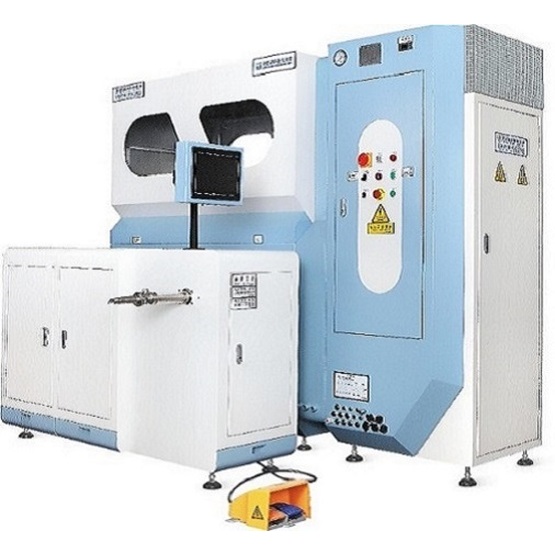

Automated Down Outerwear Filling Machine
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 1 Set/Sets |
Delivery Time: | 15 Days |
Basic Info
Model No.: 818B
Certification: CE, ISO
Type: Garment
Automatic Grade: Automatic
Condition: New
Function: Stuffing Clothes
Driven Type: Pneumatic
After-sales Service: Local Agent And Our Engineers
Additional Info
Packaging: Plywood Box
Brand: BEALEAD
Transportation: Ocean,Air
Place of Origin: CHINA
Supply Ability: 200 SETS/MONTH
Certificate: CE/ISO 9001
Port: Shanghai
Product Description
1. The patented design of down outlet for down filling machine resolves the filling problems of airtight fabrics and special soft fabrics
2. The range of single time for this down stuffing machine: 0.2-32g, capable of filling both large and small lattice panels
3. The user-friendly touch screen design enables data storage, on-time insight and data revision. It can be conveyed, inquired and tracked and is in line with the management requirements of conglomerates
4. Automatic down filling machine has two down filling ports, operated by two workers and is able to support the normal operation of five to seven assembly lines
5. The built-in auto humidity detector of down jacket filling machine can be adjusted automatically and can ensure that the humidity coefficient remains within the scope required by Chinese GB standards during the process of down-filling
6. The built-in auto down-changing device of down garment filling machine, which is time-saving and labor-saving, efficient and rapid, realizes down-changing by pressing a single key.
Brand: Bealead
Model: 818B
Composed by: 1 feeding unit and 2 weighing units/ filling station
Filling Pipes: 2
Scales by filling pipe: 3
Fillings by hour: 1000 lattices
Application: Apparel, Commodity, Textiles
Material Application: 50%- 90% down
Weight: 920kg
Filling Storage: 12kg
Weighing Range: 0.2g- 32g
Accuracy: 0.01g
Feeding Unit Size: 2.45* 0.95* 1.95m
Weighing Unit Size: 1.6* 0.57* 1.05m
Overall Size: 2.45* 4.4* 1.95m
Min. Site Area: 5m* 6m
Voltage |
220V |
Air Tank |
≥1m³ |
Air Pressure |
0.6- 0.8MPa |
Air Compressor Power |
7.5KW |
Min. Air Pressure |
0.5MPa |
Air Compressor Exhaust |
≥1m³/min |
Max. Power |
2.5KW |
Air Monitoring System |
√ |
PPR Pipe |
1 inch |
Down Returning System |
√ |
Pipe Distance |
≤20m |
Humidity Control System | √ |
ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.
Our company is R&D manufacturer of intelligent device for clothing production. We are in leading
position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.
We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service you at the first time you need.
