Auto Fiber Polyester Filling Machine
Model No.: BL-804E
Certification: CE, ISO
Automatic Grade: Automatic
Function: Filling Clothes
Driven Type: Pneumatic
After-sales Service: Local Agent And Engineers
Packaging: Plywood box
Place of Origin: CHINA
Supply Ability: 200 SETS/MONTH
Certificate: CE/ISO 9001

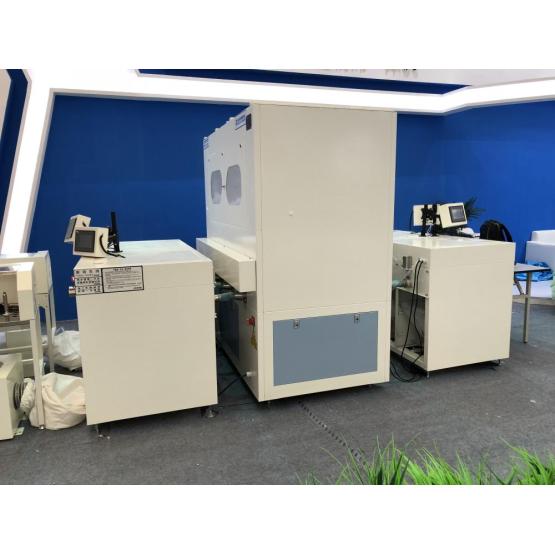

WOW, it's our new fiber filling machine, totally four filling pipes.
Two scales support each filling port, so the speed is faster than before.
Four filling ports for fiber filling machine, allow 4 operators working at the same time.
Fully automatic fiber filling machine, weighing and filling.
Max weight of ball fiber filling machine can reach to 150g, min is 5g.
Highest precision of polyester fiber filling machine reach to 0.1g.
Storage unit and weighing unit of fiber stuffing machine are combined together to reduce covering space.
Composed by: 1 feeding unit and 4 weighing units / filling station
Filling Pipes: 4
Scales by filling pipe: 2
Fillings by hour: 1000 lattices
Application: Apparel, Commodity, Textiles
Material Application: 50%- 90% down
Filling Storage: 10kg
Weighing Range: 5g- 150g
Feeding Unit Size: 2.07* 1* 2.01m
Overall Size: 2.07* 2.4* 2.01m
Min. Site Area: 4m* 6m
||Air Compressor Power||
|Min. Air Pressure||
Air Compressor Exhaust
||Air Monitoring System||
||Down Returning System||
||Humidity Control System||√|
ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.
Our company is R&D manufacturer of intelligent device for clothing production. We are in leading
position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.
We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.Our Factory
