Auto Down Filling Machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: 818B

Certification: CE, ISO

Type: Garment

Automatic Grade: Automatic

Condition: New

Function: Automatic Stuffing

Driven Type: Pneumatic

After-sales Service: Local Agent And Engineers


Additional Info


Packaging: Plywood Box

Brand: BEALEAD

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

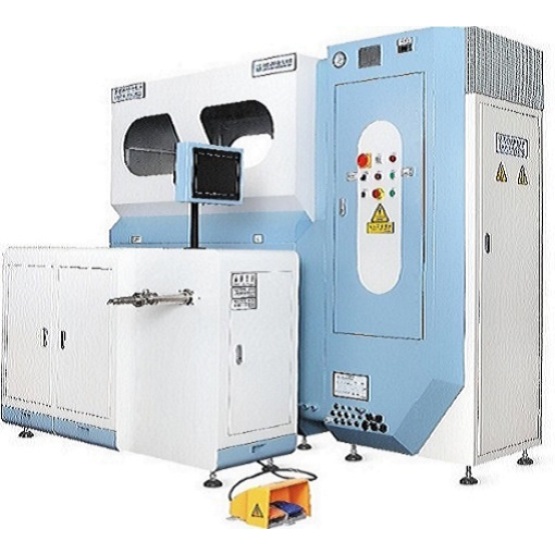

 818B automatic down filling machine is our third generation automatic down filling machine, which is our best seller. This down filling machine has many advantages:

1. More efficiency and faster: 2-3 times faster than manual work, one worker can support 2-3 assembly lines

2. Accuracy filling, tolerance within 2%, Could fill like 0.26g,3.21g

3. Wide measure, the range of weighing can set 0.2-32 grams once to suit for filling both separate grids and normal grids

4. Patented design: breathable & non-breathable fabric is totally easily used, Solved down leaking problem

5. With triple weighing system, 30% faster than 2nd gerneration machine

6. Two workers can operate at the same time, can support 5-7 assembly lines

7. Excellent for extra slim Chamber, make out Perfect garment, very even/equal

Details:

Brand: Bealead

Model: 818B

Composed by: 1 feeding unit and 2 weighing units/ filling station

Filling Pipes: 2

Scales by filling pipe: 3

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 920kg

Filling Storage: 12kg

Weighing Range: 0.2g- 32g

Accuracy: 0.01g

Feeding Unit Size: 2.45* 0.95* 1.95m

Weighing Unit Size: 1.6* 0.57* 1.05m

Overall Size: 2.45* 4.4* 1.95m

Min. Site Area: 5m* 6m

Main Specification

Voltage
220V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 7.5KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1m³/min
Max. Power 2.5KW
Air Monitoring System      √
PPR Pipe 1 inch
Down Returning System      √
Pipe Distance ≤20m
Humidity Control System      √

Accessories

Automatic Down Jacket Filling Machine

Down Filling Machine 818B

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.

Our Factory


Automatic Machinery company


Exhibitions

Automatic Filling Machine


CE Certificate

Filling Machine CE
