4 Nozzles Fiber Filling Machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BL-404D

Certification: CE, ISO

Type: Garment

Automatic Grade: Automatic

Condition: New

Function: Filling Clothes

Driven Type: Pneumatic

After-sales Service: Local Agent And Engineers


Additional Info


Packaging: Plywood box

Brand: BEALEAD

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 200 SETS/MONTH

Certificate: CE/ISO 9001

Port: Shanghai


Product Description

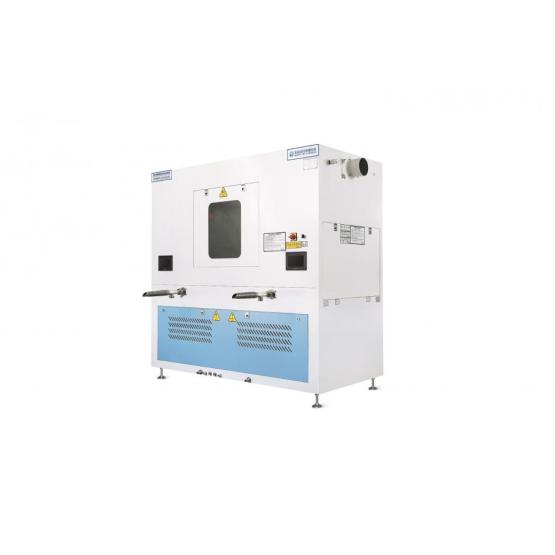

This automatic fiber filling machine is our R&D new creation of four filling stations.

Each station of fiber filling machine with 1 filling pipe and single weighing system. Weighing system is inside of the main box.

Weighing range of ball fiber filling machine is 1-80g, capable of filling both large and small lattice panels.

Highest precision of polyester fiber filling machine can reach to 0.1g.

Details:

Brand: Bealead

Model: 404D

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 4

Scales by filling pipe: 1

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Applicatiofiber

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 1g- 80g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Voltage
380V
Air Tank ≥1m³
Air Pressure 0.6- 0.8MPa
Air Compressor Power 11KW
Min. Air Pressure 0.5MPa
Air Compressor Exhaust
≥1.6m³/min
Max. Power 3.5KW
Air Monitoring System      -
PPR Pipe 1.5 inch
Down Returning System      -
Pipe Distance ≤20m
Humidity Control System

Accessories
